Stratocaster® Blend Wiring Harness

Original price £69.95 - Original price £73.95
Original price
£69.95 - £73.95
Current price £69.95
Treble Bleed?: No

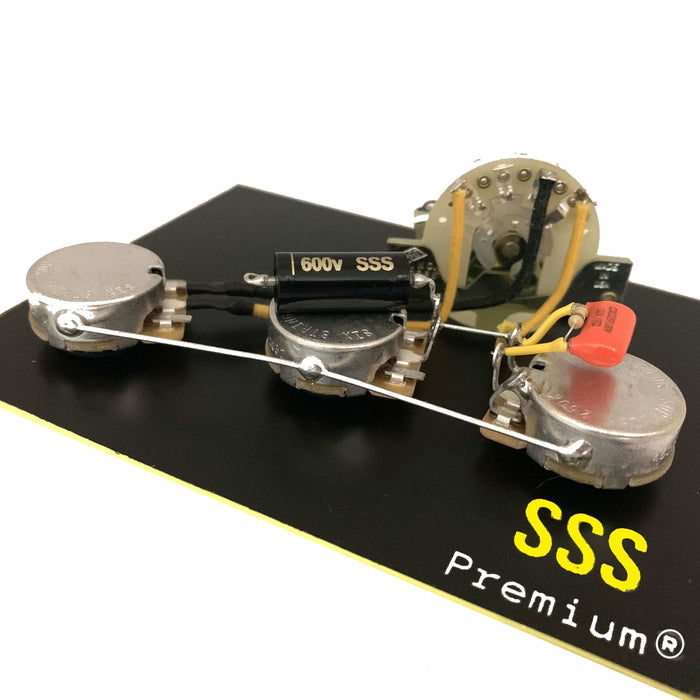

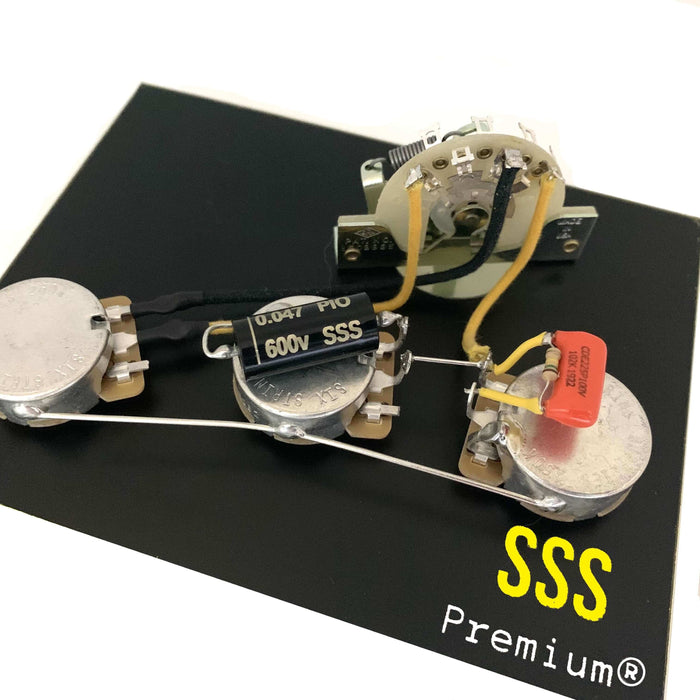

Blender Strat® wiring harness.

This popular Strat® wiring setup gives you the best of both worlds with a master volume, master tone and a blender pot allowing you to blend various combinations of pickups into play.

Switch & blender function;

Blender on 10 (plays like a normal Strat®)

  • Position 1: Bridge
  • Position 2: Bridge & middle
  • Position 3: Middle
  • Position 4: Middle and neck
  • Position 5: Neck

Blender on 1

  • Position 1: Bridge with neck faded in
  • Position 2: Bridge and middle with neck faded in
  • Position 3: Middle
  • Position 4: Middle and neck with bridge faded in
  • Position 5: Neck with bridge faded in

Strat® wiring harness features;

  • 250k SSS Premium® CTS pots (8% tolerance)
  • 250k SSS Premium® CTS blender pot

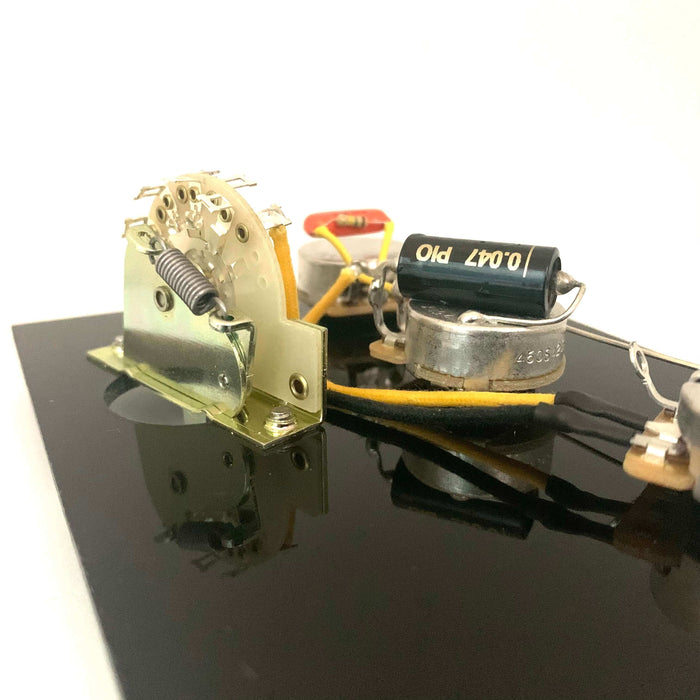

  • CRL USA spring action 5 way switch
  • Optional treble pass capacitor (treble bleed mod)
  • 0.047uF SSS Premium® PIO capacitor
  • Prewired Switchcraft® 1/4'' jack socket

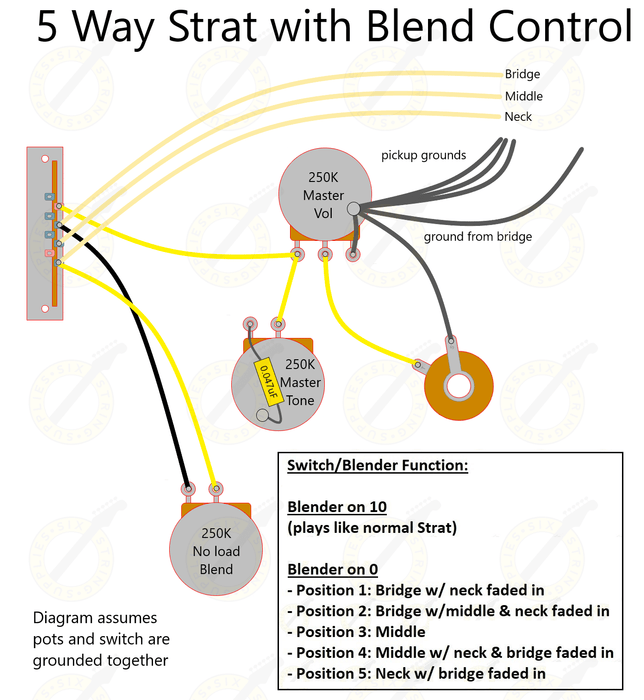

  • Wiring diagram

SSS Premium® CTS Pots

Featuring SSS Premium® CTS pots, our blend Strat prewired kit is the ultimate upgrade to stock electronics in modern guitars. SSS Premium® pots have a custom audio taper as opposed to the modern 10% audio taper, giving you a smoother and more rounded control sweep.

This kit also features a special blender pot, which when fully open at 10, takes the pot out of the circuit.

Will this fit my guitar?

This wiring harness will fit USA and Mexican made Stratocasters with no modification. If you are installing into an imported model, you may be required to drill the pot holes on the pickguard to M10 diameter to accommodate the larger CTS pots. Simply attach your pickups, the ground from the bridge and the jack and you are ready to go. This kit gives you a lot of versatility and tonal range.

Please note prewired kit orders take up 3-5 business days to assemble and pack.
