Les Paul® Harness (Coil Split)

Original price £89.95 - Original price £89.95
Original price
£89.95
£89.95 - £89.95
Current price £89.95
Availability:
Only 2 available
Availability:
Out of stock

Delivery time

We are closed 28th March - 2nd April - no orders will ship during this period.

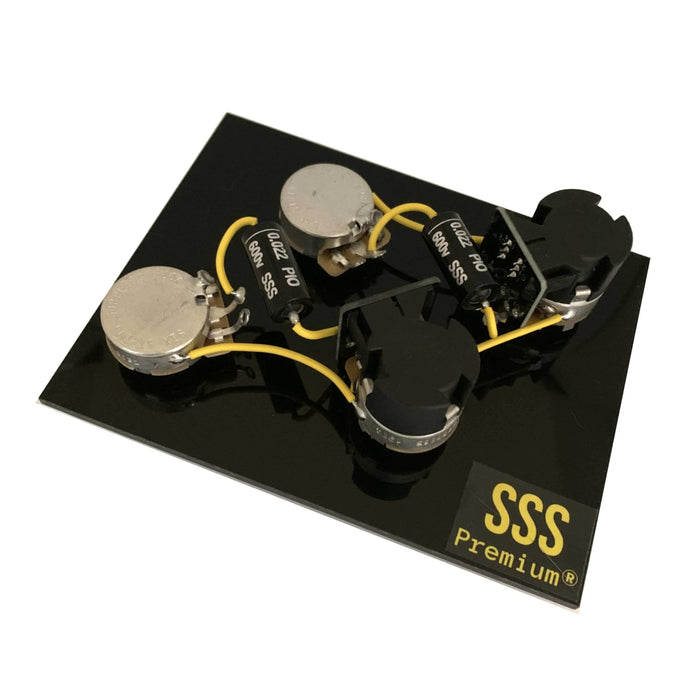

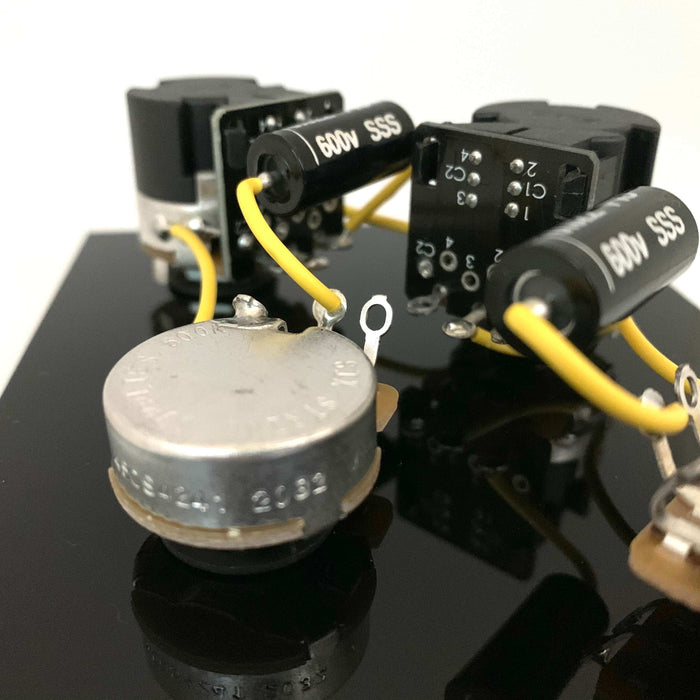

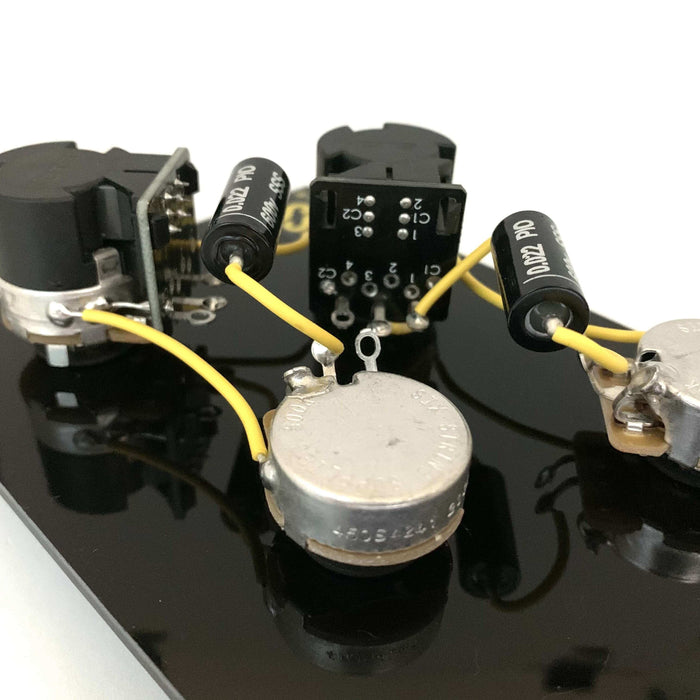

Looking to give an extra dimension to your Les Paul®? This prewired Les Paul® kit makes use of 2 premium CTS push pull pots which allow you to coil split each humbucker.

Coil splitting effectively grounds one coil of the pickup leaving you with the brighter single coil tone. The harness is wired in the popular "50s" style wiring.

Controls:

Both push pulls down - normal Les Paul

Neck tone up - splits neck humbucker

Bridge tone up - splits bridge humbucker

Prewired harness includes:

  •  2 x SSS Premium® CTS 500k push pull pots (8% tolerance)
  •  2 x 500k SSS Premium® CTS pots (8% tolerance)
  •  0.022uF SSS Premium® PIO capacitor (bridge position)
  •  0.015uF SSS Premium PIO capacitor (neck position)
  •  Traditional tinned copper ground wire

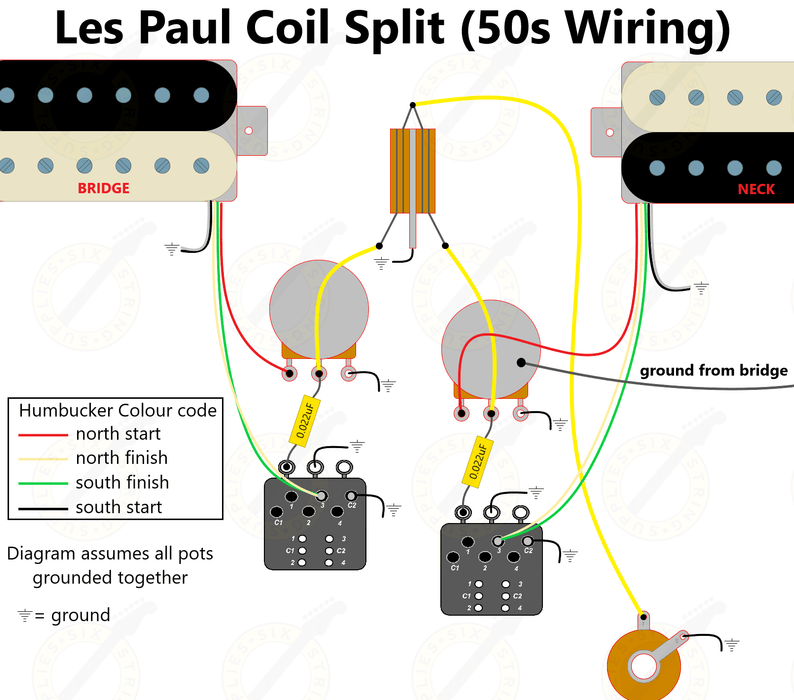

  •  Easy to follow wiring diagram

Installation is easy but some minor soldering is required to connect your pickups and the ground from the bridge. Each pot comes with 2 hex nuts for easy shaft height adjustment.

Will This Fit My Guitar?

This prewired Les Paul harness will fit genuine Gibson® USA Les Pauls without modification. It can be made to fit any Les Paul® copy that takes long shaft pots but you may be required to drill the tone/volume switch holes to 10mm if fitting into an imported model. This kit is available in both long shaft and short shaft versions. Short shaft pots are suited to Epiphone, Tokai and other Les Paul copies.

Need a new toggle switch? our prewired Switchcraft toggle switch is a perfect addition to this wiring harness.

Note - this prewired harness will ONLY work with 4 lead wire humbuckers
