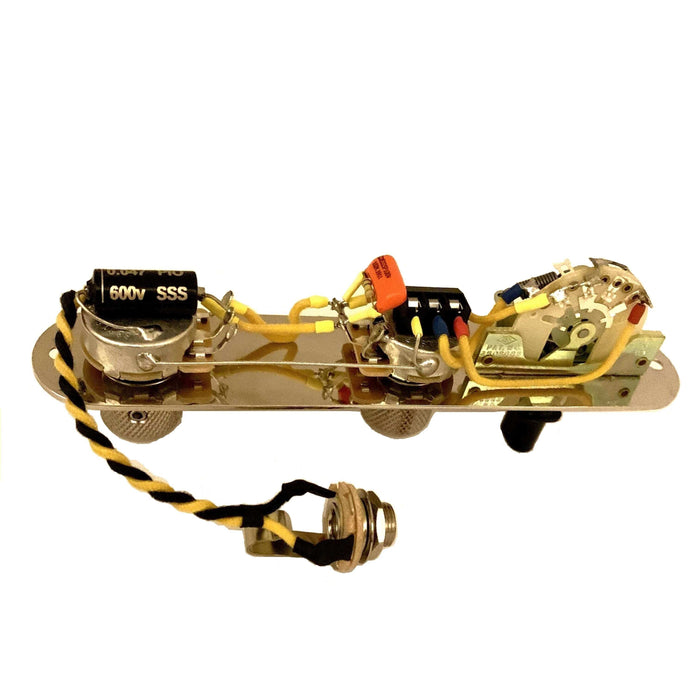

The solderless version of our fully loaded Telecaster® control plate.

Assembled using the finest components, our solderless kits are a great way to upgrade your guitar's electronics to custom built standards. This prewired Telecaster® control plate consists of one of our Telecaster® wiring harnesses loaded into top of the range nickel hardware.

Features:

• 2 x 250k SSS Premium® CTS pots (8% tolerance)
• 1 x CRL USA 3 way spring action switch
• 1 x SSS Premium® PIO 0.047uF capacitor
• Optional treble bleed capacitor
• 1 x Switchcraft USA 1/4'' jack socket
• 2 x domed Tele control knobs
• 1 x Top hat/barrel switch tip
• 1 x Telecaster control plate

Will This Fit My Guitar?

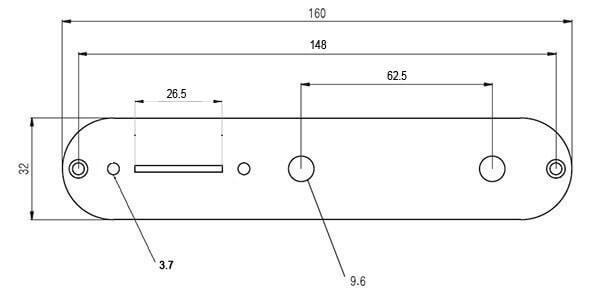

The control plate is made to Fender® dimensions and will fit Mexican and USA made Telecasters with no modification required. It will fit imported models and partscasters but the control plate dimensions might be different and you may be required to drill into the body.

Installation

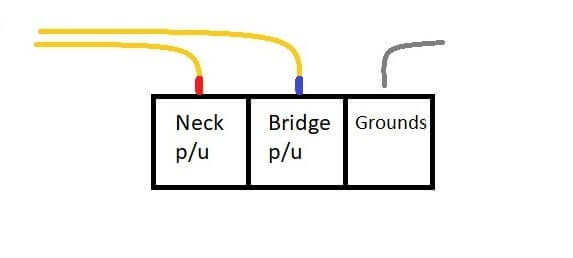

An easy to follow wiring diagram is provided. You simply need a screwdriver to secure the pickup and ground wires into the colour coded screw terminal blocks provided.
