Les Paul Coil Split Wiring Kit

Original price £74.95 - Original price £93.95
Original price
£74.95 - £93.95
Current price £74.95
Pot Size: Short Shaft
Switch Type: Short Frame
Capacitor Type: Orange Drops

Our premium Les Paul® Coil Split wiring kit is the perfect upgrade for standard Les Paul wiring and adds an extra dimension to your guitar.

This wiring kit consists of CTS push pull pots which when pulled up, split the humbuckers giving the player single coil tones.

Our wiring kit gives you everything you need for a full re-wire. Our kits only use the very best components available. A full wiring diagram is included and the below video shows one method of how to wire it together. Alternatively, our wiring guide shows step by step diagrams.

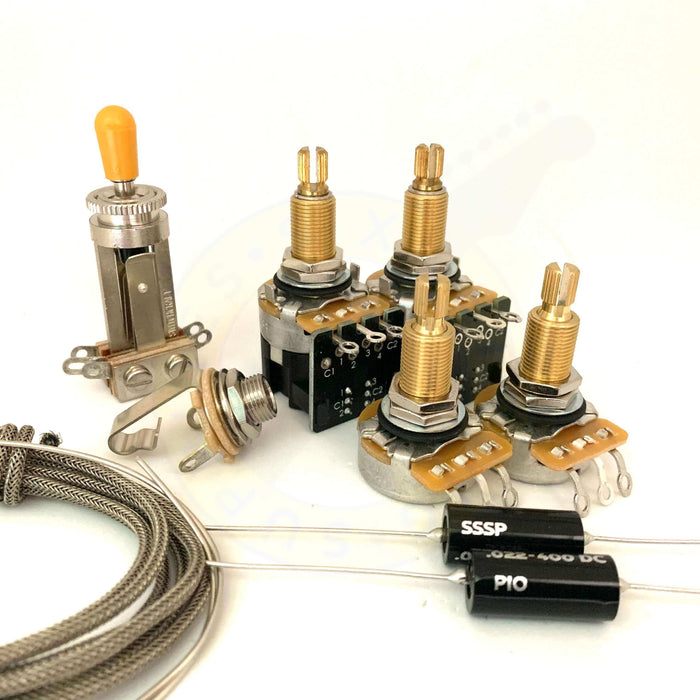

Les Paul® Coil Split Wiring Kit:

  • 2 x CTS 500k push pull pots (10% audio taper)
  • 2 x 500k SSS Premium® CTS pots
  • 1 x Switchcraft® toggle switch
  • 1 x Switchcraft® 1/4'' jack socket
  • 5ft braided hook up wire
  • 1.5ft tinned copper ground wire
  • 2 x 0.022uF orange drop capacitors
  • 15cm 3.5mm diameter heat shrink rubber tubing
  • Easy to follow wiring diagram
  • Deep threaded Switchcraft® nut (for long frame switch only)
  • Optional SSS Premium® PIO capacitor upgrade

Components from the finest brands including CTS and Switchcraft.

This kit is available with long shaft pots (including long frame toggle switch) or with short shaft pots (and short frame toggle switch). The long shaft pots are suited to most Gibson® models and thick arch topped models. The short shaft version is better suited to Epiphone, Tokai and other far eastern imported models.

Comes with a black, cream or amber switch tip depending on availability.

We also offer this as a prewired harness here.

PLEASE NOTE: This setup requires 4 conductor pickup wires to function as intended.
