Play a Telecaster® but looking for a little more tonal variation from using two single coils?

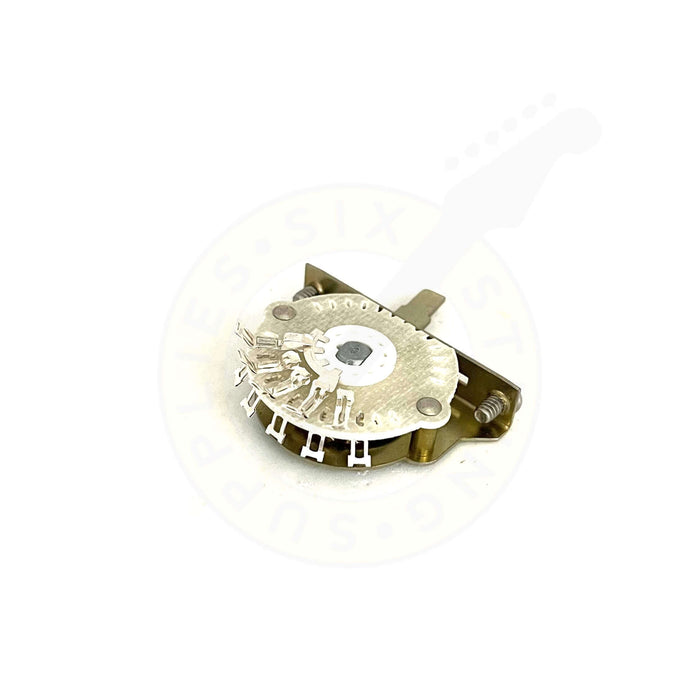

This OAK Grigsby 4-way switch for Tele offers the classic 3 position of a normal switch but the 4th position allows both pickups to be played in series, offering a fuller, fatter sound, a little like a humbucker.

This is the same quality switch found in our 4 way Telecaster wiring kit.

Installation:

The 4 way OAK Grigsby switch can be installed either way round - it works both ways.

There is a 4 way Tele mod wiring diagram demonstrating how to wire the switch. Minor modification to your neck pickup is required, during which you need to un-ground the metal casing from the pickup and add a third ground wire from the casing to the back of the volume pot.

Dimensions

• Centre to centre mounting holes = 41mm
• Cavity depth required = 36.5mm

For full installation instructions including how to wire the switch and re-ground the neck pickup, read our step by step guide on the 4 way Tele wiring mod.

Oak Grigsby p/n: 51973
